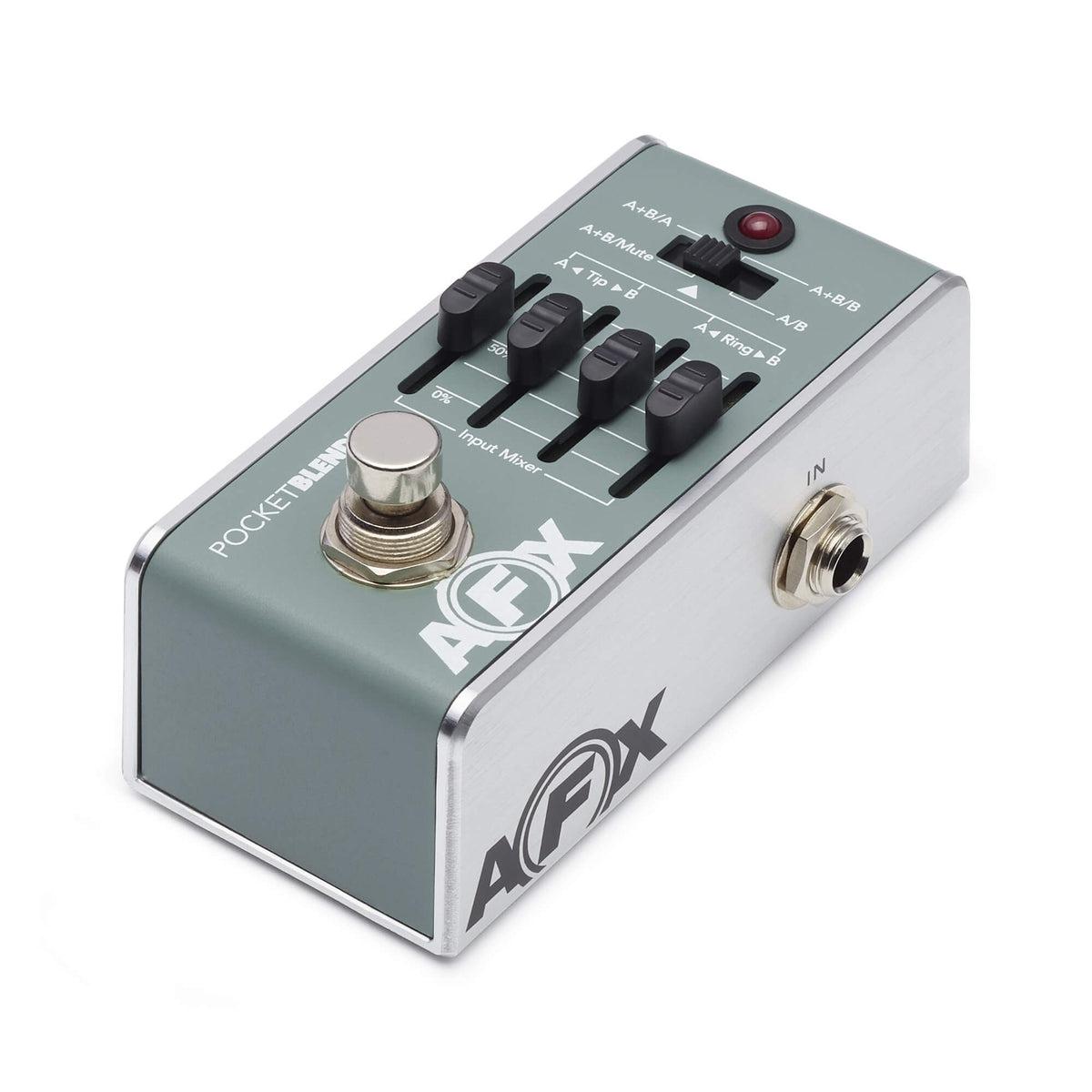

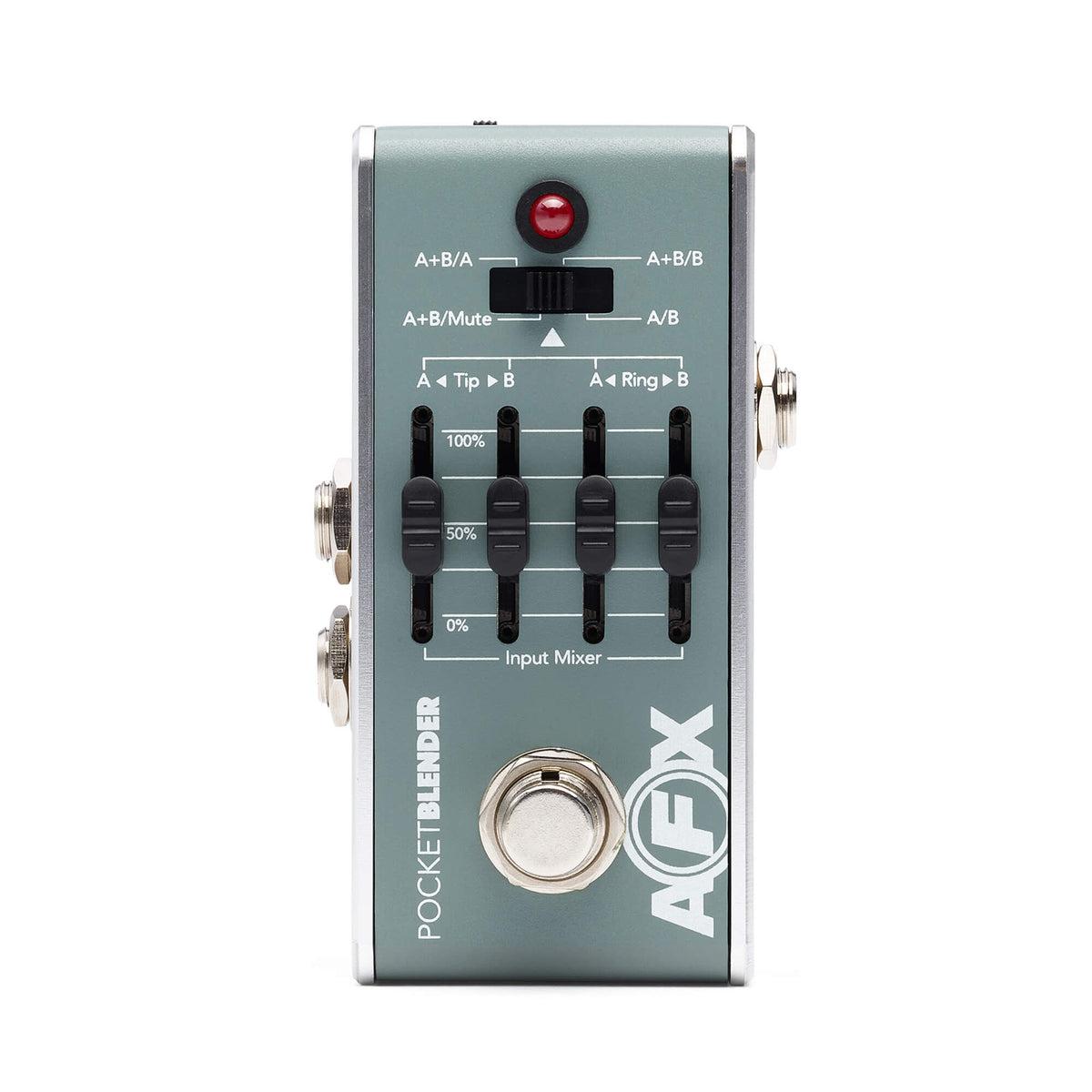

Fishman AFX Pocket Blender Mini A/B/Y Pedal

The Fishman AFX Pocket Blender Mini A/B/Y Pedal is designed for versatility. This pedal features a level-adjustable A/B output, a built-in DI output with ground-lift, a boost pedal, a Y-splitter and a two-channel mixer. It's a powerful audio tool for switching between two instruments, controlling your sound levels, and sending it to a house PA or amplifier.

Features

• Essential I/O Toolbox: A/B/Y, Input Mixer, Input Selector, and Boost Functionality
• Balanced D.I. Output with Ground Lift
• Innovative Dual Path Routing
• Super Compact Design Fits Almost Anywhere
• 9V External Power Required (sold separately)

Specs

• AUDIO I/O: 1/4” mono input and output 1/4” balanced DI output with ground lift
• DSP: N/A (all analog)
• DIMENSIONS: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
• MATERIAL: Durable aluminum enclosure
• CURRENT DRAW: 53mA, typical
• POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
