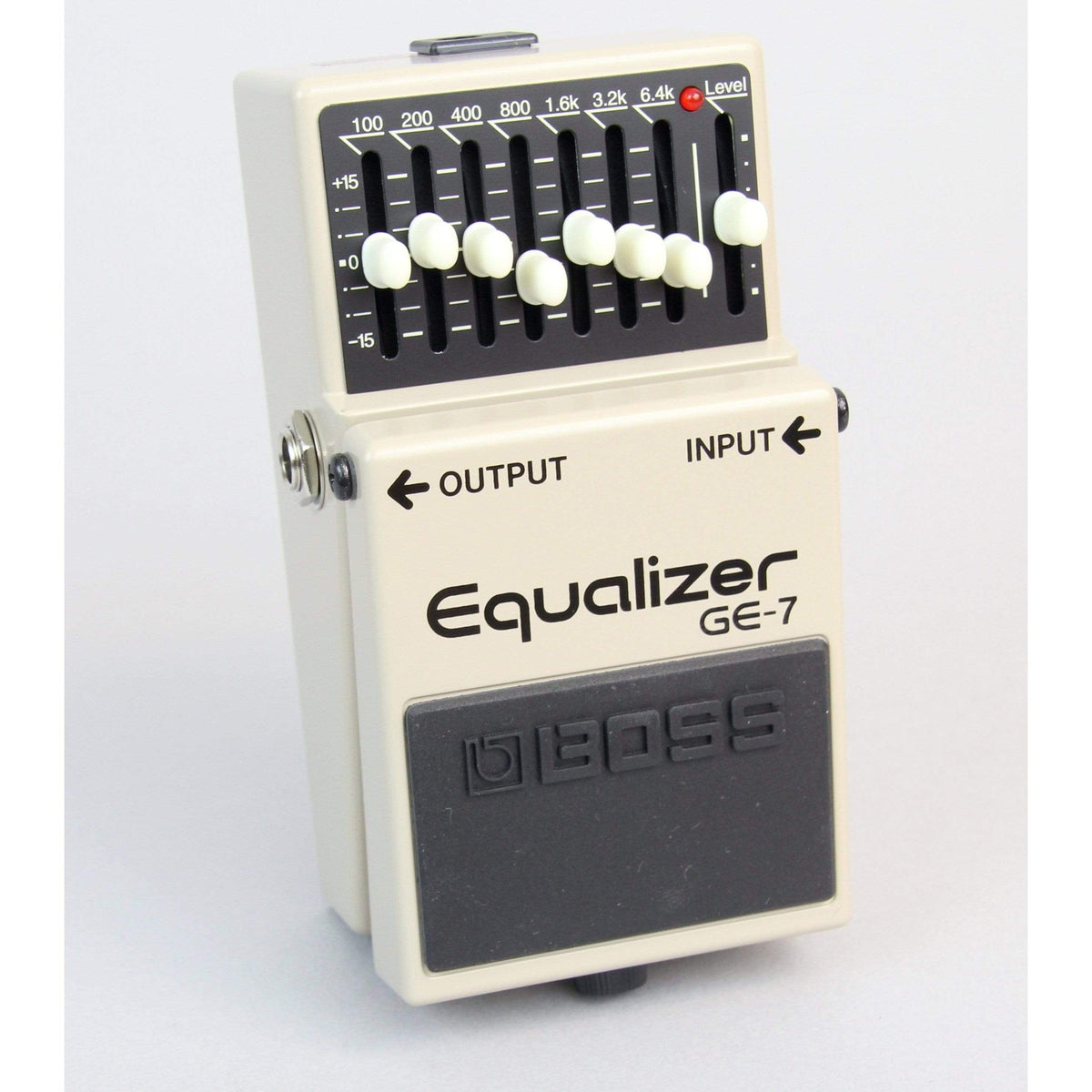

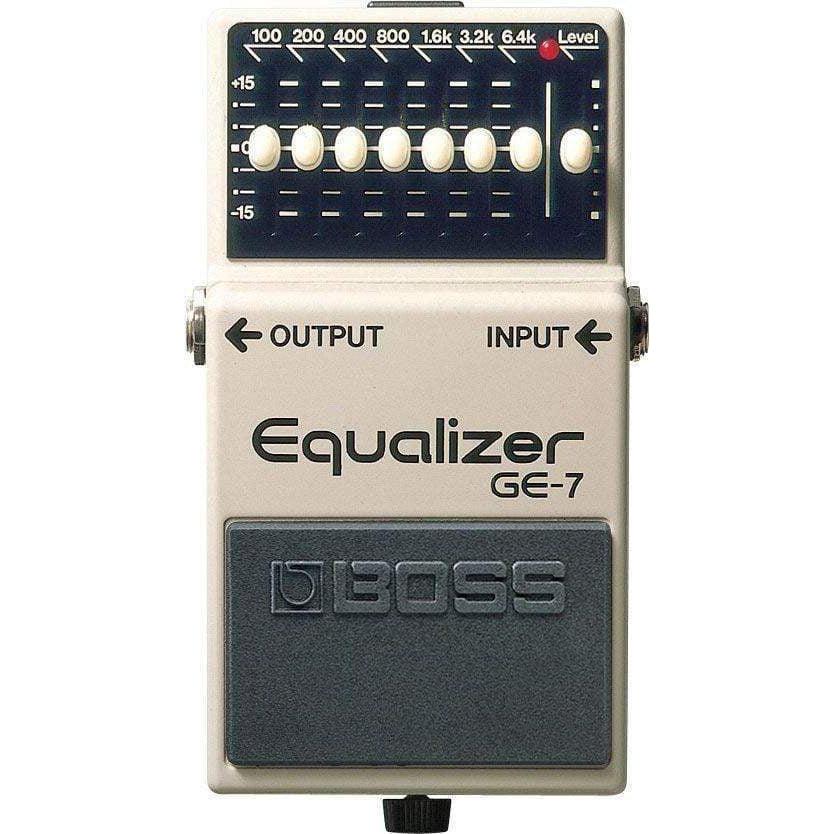

BOSS GE-7 Graphic Equalizer

The BOSS GE-7 is the graphic equalizer customized specifically for guitarists. Compact and built tough, it's made for your pedalboard - live or in the studio. The GE-7's equalizer points give you control over the most crucial parts of your sound with 15db of boost or cut per band.

Total control of your sound right at your feet.

• 7 EQ sliders - 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz, and 6.4kHz.
• Up to 15db of boost or cut on each band.
• Kill previously uncontrollable feedback, boost specific frequencies during solos, or shape a unique tone you can access with a single stomp.

When it's time for the solo, make sure you stand out.

Don't let the subtle details of your playing get lost in the mix! Use the GE-7 to sculpt your own exquisite solo sound that you can kick in anytime. Push the volume with a flat boost, or cut and boost specific frequencies for surgical tone control.

Total tonal control is right at your feet with the GE-7, stomp one today!

Full Features

• 7 bands of adjustable EQ in a small footprint, plus an overall level slider.
• Boost or cut up to 15db on each EQ band.
• Graphic EQ made for guitarists to control feedback, boost your volume, or shape a unique tone for instant recall.
• 5-year BOSS warranty.

Full Specs

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohms
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Residual Noise Level: 1 k ohms
• Residual Noise Level: -100 dBu (IHF-A Weighted, Typ.)
• Variable Range: Equalizer Control: +/- 15 dB, Level Control: +/- 15 dB
• Connectors: INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V)
• Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
• Current Draw: 10 mA (DC 9 V)
• Accessories: Dry Battery 9 V type (6F22/9 V)
• Option: AC Adaptor (PSA-Series)
