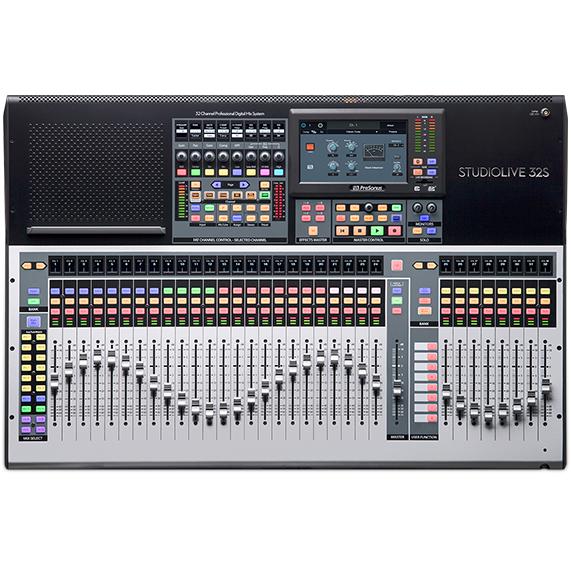

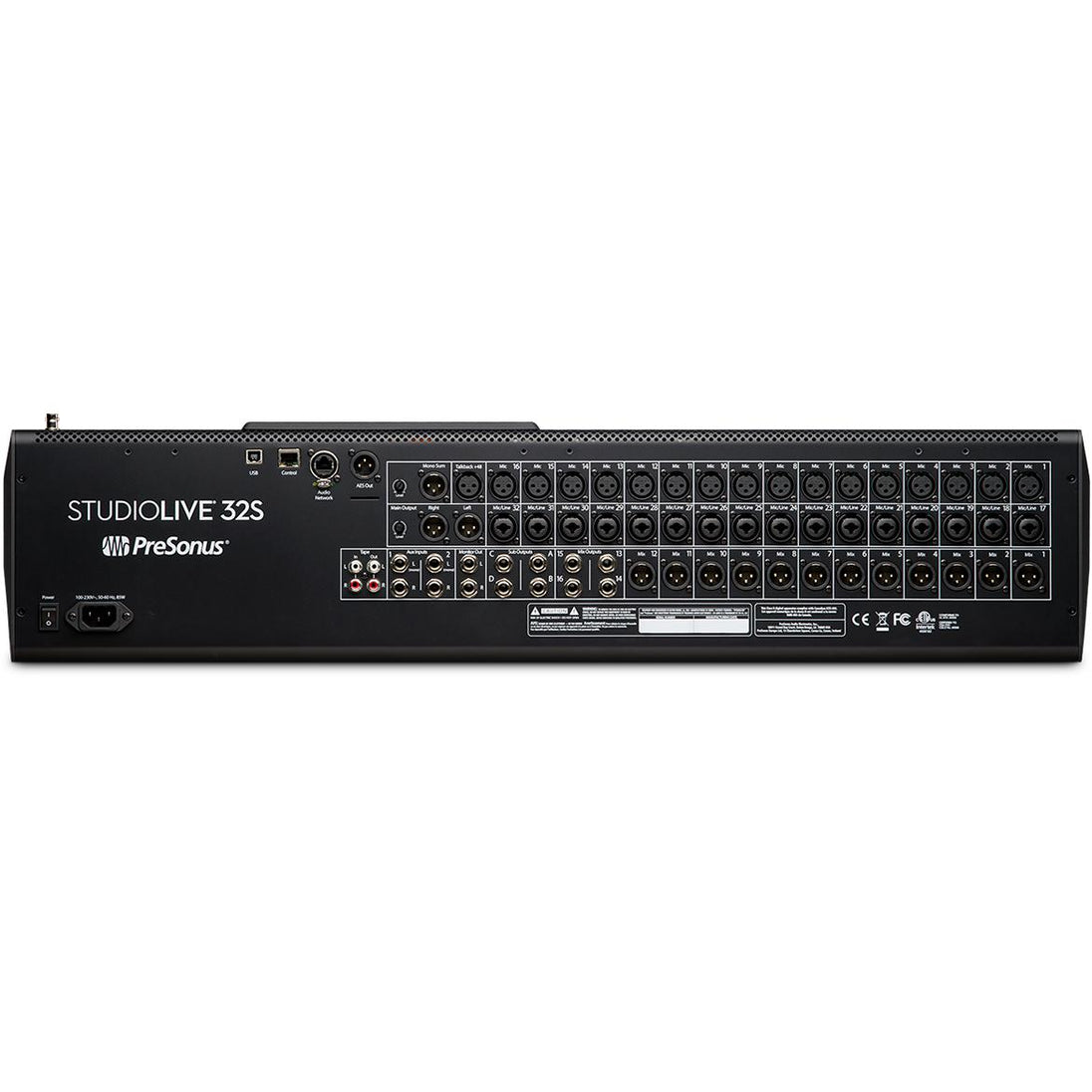

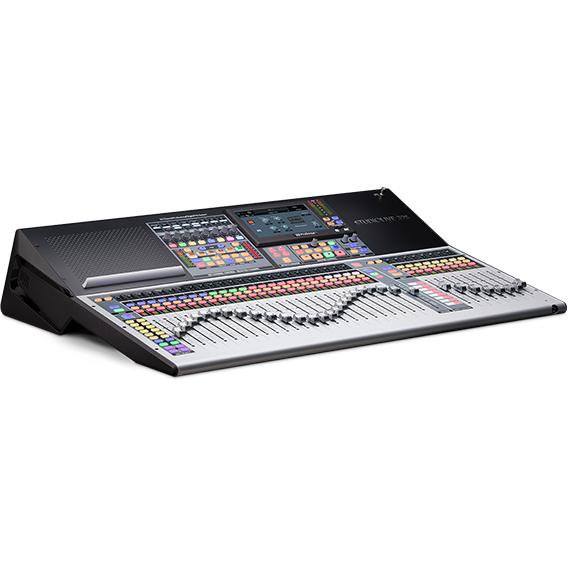

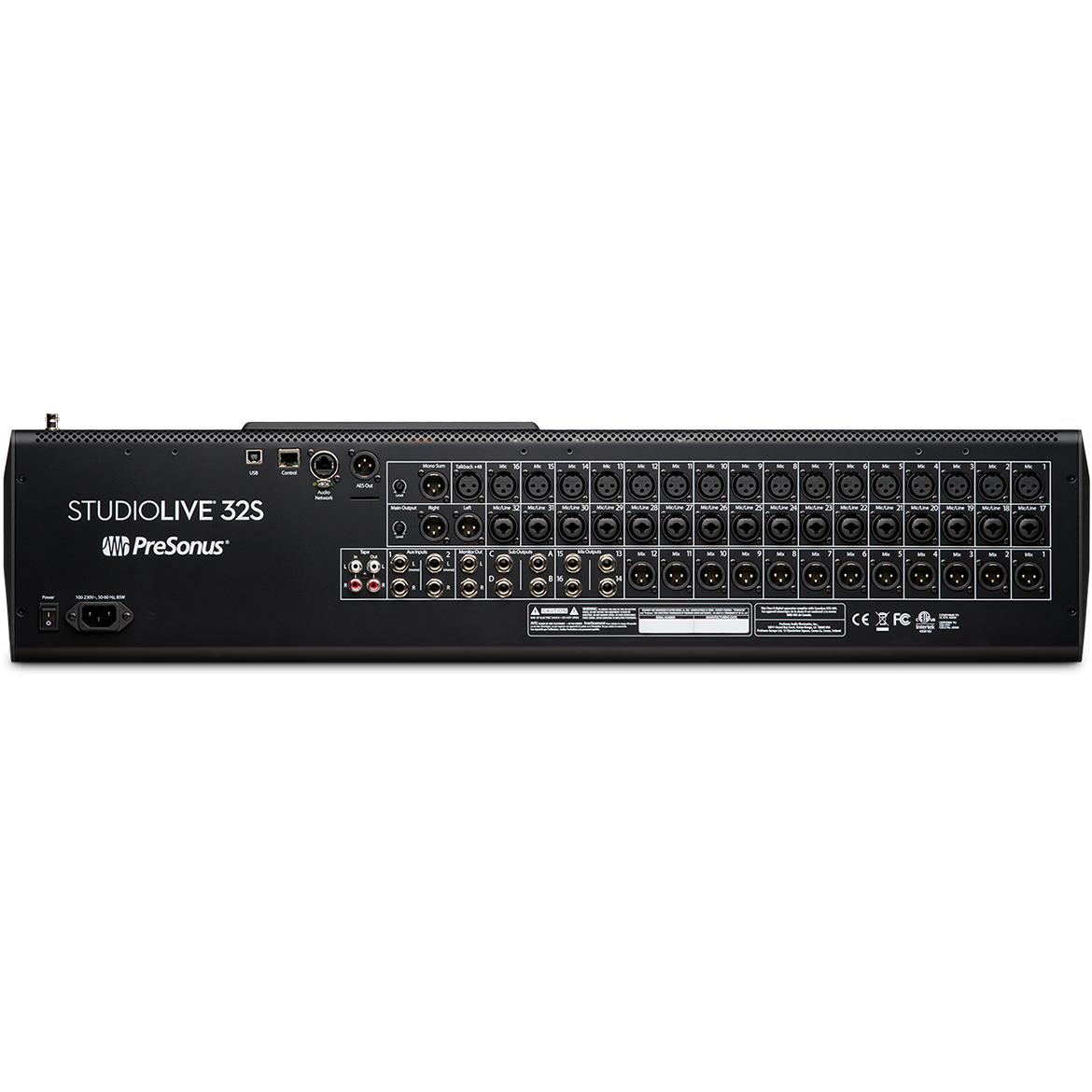

The most powerful and flexible digital mixer for recording and live sound.
The 32-channel StudioLive® 32 is the most powerful and flexible digital mixer available for live sound and recording. PreSonus® gave the StudioLive 32 the works: 40 total inputs; extensive AVB networking; more recording tracks over USB than any other digital mixer; touch-sensitive motorized faders; and a host of State-space modeled Fat Channel plug-ins that let you expand your processing options. Packaged with a full suite of integrated software, including PreSonus’ Studio One® DAW and Capture™ live-recording software, the StudioLive 32 is a groundbreaking professional digital mixer and USB audio interface in a compact, scalable design.
Technical Specifications
Microphone Preamplifier |
|
|---|---|
|
Input Type |
XLR Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
1 kΩ |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Common Mode Rejection Ratio (1 kHz at unity gain) |
65 dB |
|
Gain Control Range (±1 dB) |
0 dB to +60 dB |
|
Maximum Input Level (unity gain) |
+12 dBu |
|
Phantom Power (±2 VDC) |
48 VDC, switchable per channel |
Line Inputs |
|
|---|---|
|
Type |
¼” TRS Female, balanced |
|
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
|
Input Impedance |
10 kΩ |
|
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
|
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
|
Maximum Input Level |
+18 dBu |
Tape Inputs |
|
|---|---|
|
Type |
RCA Female, unbalanced (stereo pair) |
|
Maximum Input Level |
+12 dBu, ±0.5 dBu |
XLR Outputs |
|
|---|---|
|
Type |
XLR Male, balanced |
|
Maximum Output Level |
+24 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Line Outputs |
|
|---|---|
|
Type |
¼” TRS Female, balanced |
|
Maximum Output Level |
+18 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Tape Outputs |
|
|---|---|
|
Type |
RCA Female, unbalanced (stereo pair) |
|
Maximum Output Level |
+18 dBu, ±0.5 dBu |
|
Output Impedance |
100Ω |
Headphone Output |
|
|---|---|
|
Type |
¼” TRS Female, active stereo |
|
Maximum Output |
100 mW/ch. @ 60Ω load |
|
Frequency Response |
20 Hz – 20 kHz (± 0.5 dB) |
|
THD+N |
0.01%, 1 kHz, max gain, 20 Hz BW, unwtd |
|
S/N Ratio |
96 dB, 1 kHz, max gain, 20 Hz BW, unwtd |
System Crosstalk |
|
|---|---|
|
Input to Output |
-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
|
Adjacent Channels |
-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
Digital Audio and Control |
|
|---|---|
|
ADC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
DAC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
|
USB Recording Port |
USB 2.0, Type-B |
|
Bluetooth™ Input |
4.1, stereo |
|
AES/EBU Output |
XLR Male |
|
Network Control Port |
RJ-45 |
|
AVB Audio Network Port |
Locking XLR Ethernet |
|
Internal Processing |
32-bit, floating point |
|
Sampling Rate |
48 kHz, 44.1 kHz |
|
A/D/A Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+18 dBu |
|
Total System Latency |
1.9 ms (local routing, analog in-analog out, all processing active) |
Clock |
|
|---|---|
|
Jitter |
<20 ps RMS (20 Hz - 20 kHz) |
|
Jitter Attenuation |
>60 dB (1 ns in, 1 ps out) |
Power / Environmental |
|
|---|---|
|
Connector |
IEC |
|
Input-Voltage Range |
90 to 230 VAC (±10%) |
|
Power Requirements (continuous) |
85W |
|
Recommended Ambient Operating Temperature |
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit |
Physical |
|
|---|---|
|
Height |
6.51” (165.36 mm) |
|
Width |
32.37” (822.21 mm) |
|
Depth |
22.97” (583.48 mm) |
|
Weight |
37.2 lbs. (16.9 kg) |
